Blowers Universal By-Pass


Wide selection of blower and motor sizes based on universal motor technology. Bypass designs to protect the motor from the working air stream, with option to separate water moisture.

Various designs for pressure applications in addition to vacuum modes.
3d-models-icon 3d-models-icon-white
Configure suitable gearboxes and download 3D models
CONFIGURATOR
head set blue headphone
Any questions on this product? Please feel free to contact us!
CONTACT US
Full Specifications
GO TO SPECIFICATIONS
Downloads
GO TO DOWNLOADS

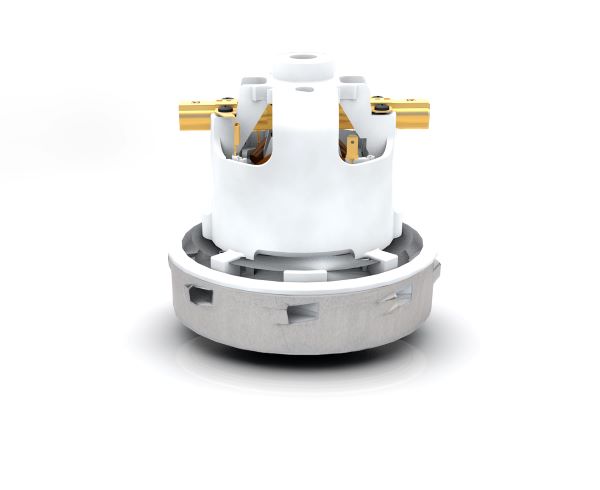

Blowers-by-pass
feature card bg
adjustable-icon

Adjustable

  • Custom windings for applications
  • AC and DC supply voltage options
  • Various fan stages for optimized working point
  • Customized thermal protection
feature card bg
Flexible

Durable

  • Durable construction
  • Long brush life
  • Protective coatings
  • Customized thermal protection
feature card bg
Slim and quiet

Low noise

  • Slimmer than standard motors
  • Optional without terminal box
  • Ideal for limited available space
feature card bg
Competence

Competence

  • 60 Years of drive experienced
  • High competence in application support
  • 100% Made in Europe

Specifications

Max. Airflow                35-72         I/sec
Rated Voltage              100 - 250 AC,  12 / 18 / 24 / 36 DC            V
Max. Power Input              580 - 2000          W
Max. Efficiency             27.3 - 48.1           %


Downloads

MAE Catalog

MAE Product Catalogue

download-file

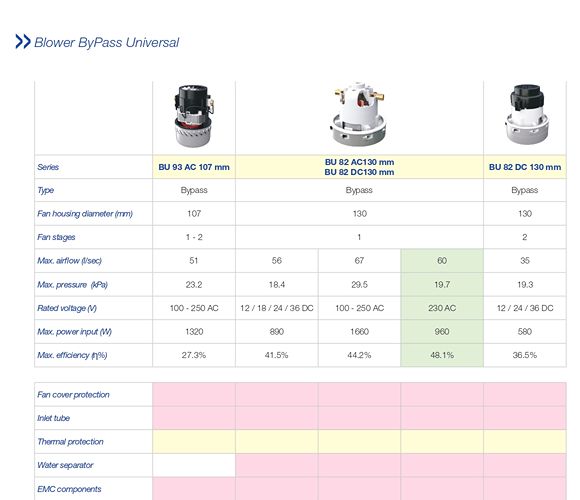

Blower-bypass-universal

Universal By-Pass

download-file
  • Product Datasheets
Datasheet of Blower Universal from AMETEK

BU 82 AC 130mm 2-Stage

download-file

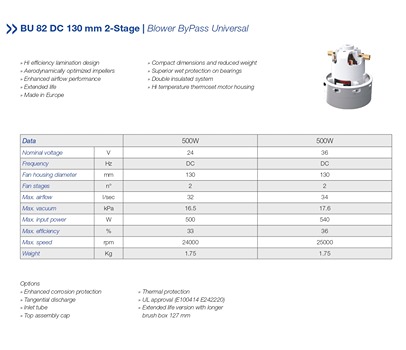

Datasheet of Blower Universal from AMETEK

BU 82 DC 130mm 2-Stage

download-file

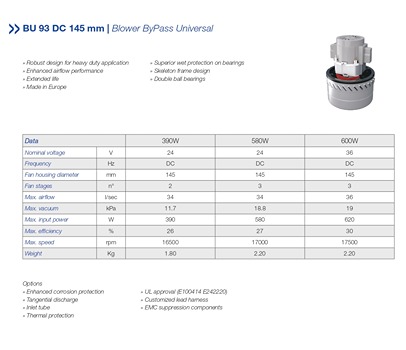

Datasheet of Blower Universal from AMETEK

BU 93 DC 145mm

download-file
